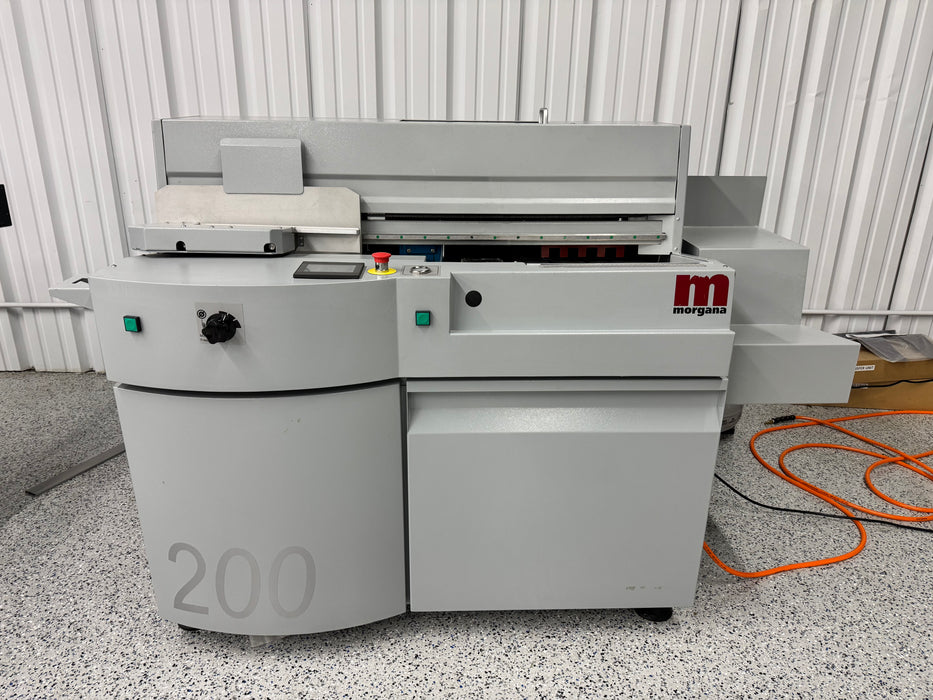

Morgana 200 PUR Perfect Binder

This machine has been checked out and tested by one of our factory trained service technicians.

The DigiBook 200 is equipped with a patented closed gluing system where the spine and side gluing is automatically applied by a slot applicator for the utmost binding quality and accuracy.

PUR is the strongest, most flexible binding adhesive available and offers several additional advantages over other binding adhesives. When inks, coatings or digital print toners are present in the spine area these can compromise the strength of typical hotmelt perfect binding.

PUR is resistant to this and will form a super-strong bond with all weights and finishes of paper stocks. In addition PUR works well with synthetic and recycled-content stock.

FEATURES

• Up to 200 books per hour
• Touch screen operation with automatic set up
• Binding length (spine) from 4.7″ up to 14.9″
• Spine thickness from 0.07″ to 1.96″
• Adjustable spine preparation by sophisticated milling and notching device
• Paper chip extractor
• Patented hermetically sealed PUR application system for a spine and side gluing with automatic glue cut-off
• Automatic cleaning and sealing of the glue head
• Electronic connection to Morgana Autocreaser Pro for cover creasing

SPECIFICATIONS

• Touch screen: Yes
• Spine length (Max / Min): 380mm x 120mm
• Book height (Max / Min): 325mm x 110mm
• Block/spine thickness: 2 – 50mm
• Cover dimension maximum: 700mm x 380mm
• Cover dimension minimum: 222mm x 120mm
• Maximum cover weight: 400gsm
• Speed: Up to 200 books per hour
• Dimensions: L 1770mm x W 900mm x H 1270mm
• Electrical Requirements: 220v, 16amp
• Product Weight: 551 lbs (250 kg)
