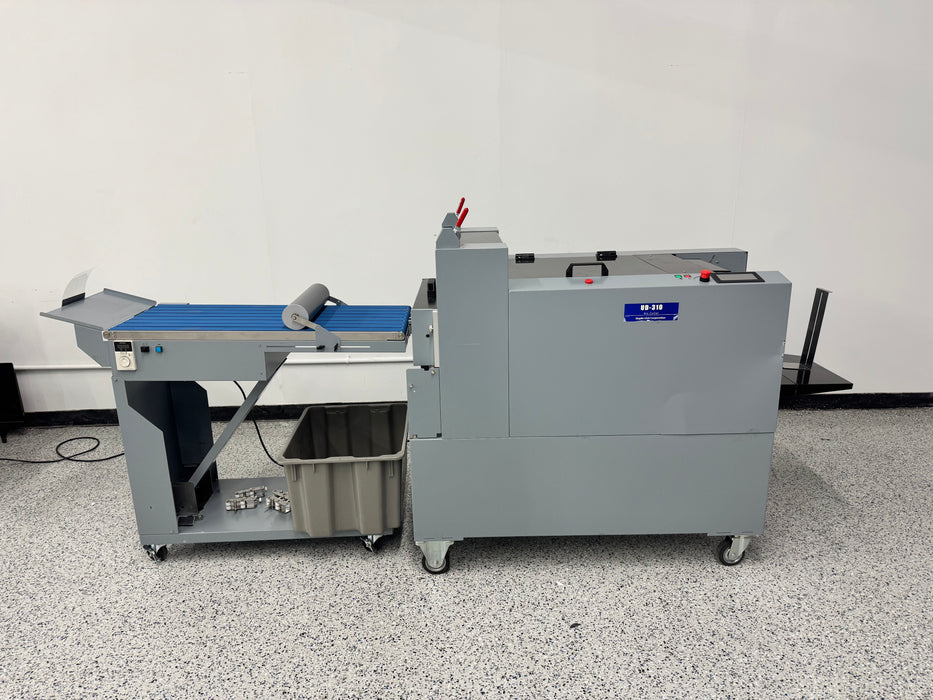

PRE-OWNED Duplo UD-310 Die Cutter
Description
The machine has been checked out by our factory trained technicians and ready for a new home.

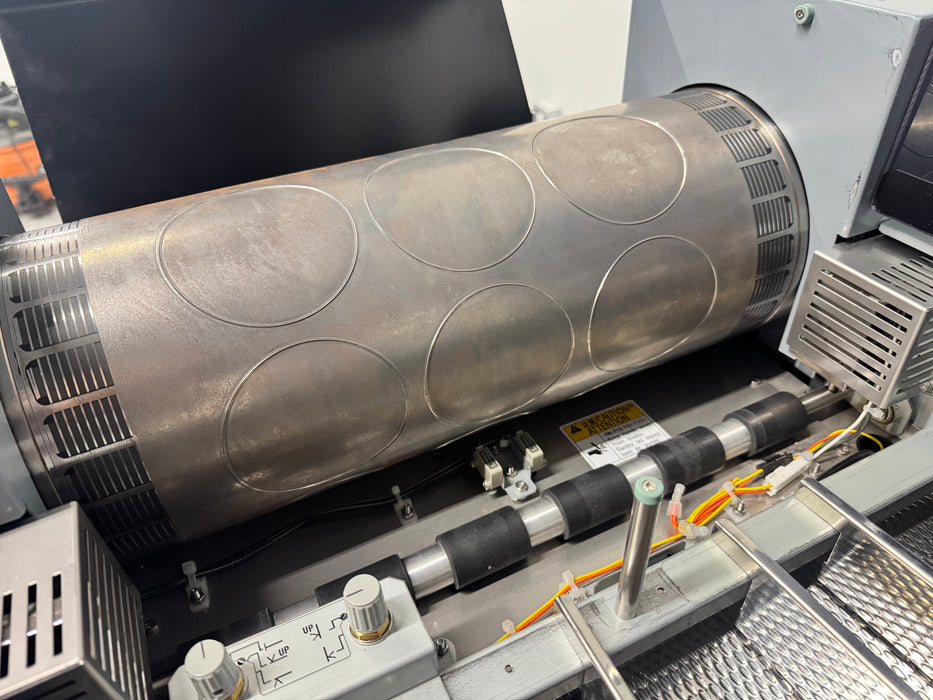

The high-speed UD-310 Rotary Die Cutter delivers packaging and print marketing applications in distinctive shapes and sizes to help you stand out from the competition. Processing up to 4,000 sheets per hour, the UD-310 utilizes a magnetic cylinder and interchangeable flexible dies that affix to it to process paper, laminates, adhesives and synthetic stocks up to 400 gsm.
Offer custom finishing options by bringing this value-added service in-house. Suited for both long and shorter runs, the UD-310 is a highly productive and cost-efficient solution with minimal job setups and fast turnarounds.
Features
- High speed die cutting
- Easy-to-mount dies for quick changeovers
- Automatically separates skeleton from finished pieces
- Future in-line capability with a digital press, UV coater or high pile feeder
- Die cut business cards
- Custom packaging
- Stickers and labels
- Door Hangers
- Bottleneckers
- Brochures
- Postcards
- Much more
Paper Size |
Min 8.267” x 11.693” Max 15.35” x 20.47” |
Paper Weight |
Min 106 gsm Max 400 gsm |
Speed |
3-step speed adjustment High: 8000 rotations—up to 4000 sheets/hour Medium: 5400 rotations—up to 2700 sheets/hour Low: 2700 rotations—up to 1350 sheets/hour |
Tolerance |
+/-0.2mm |
Feed Capacity |
Up to 8.7” (220 mm) |
Substrates |
Paper, laminates, adhesives, and synthetic stocks |
