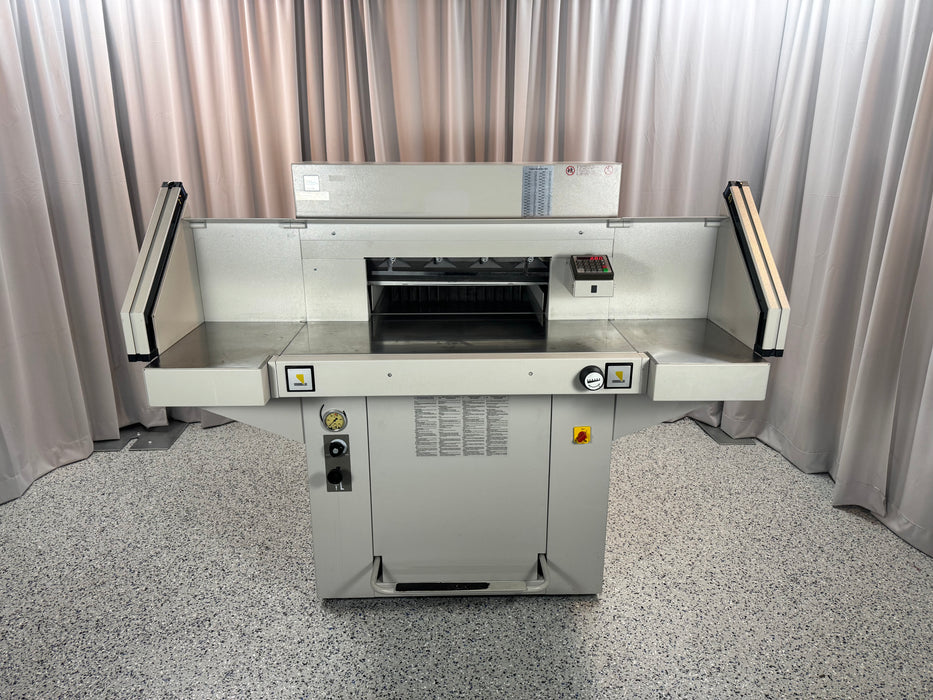

Triumph 5551-EP Hydraulic Programmable Paper Cutter

Original price $11,900.00 - Original price $11,900.00
Original price
$11,900.00
$11,900.00 - $11,900.00
Current price $11,900.00
Questions?
Call us at (877) 774-3066
Description

Our technicians have inspected and tested this paper cutter and it's in good working condition.  It includes extra blade, cutting stick, blade change tools.

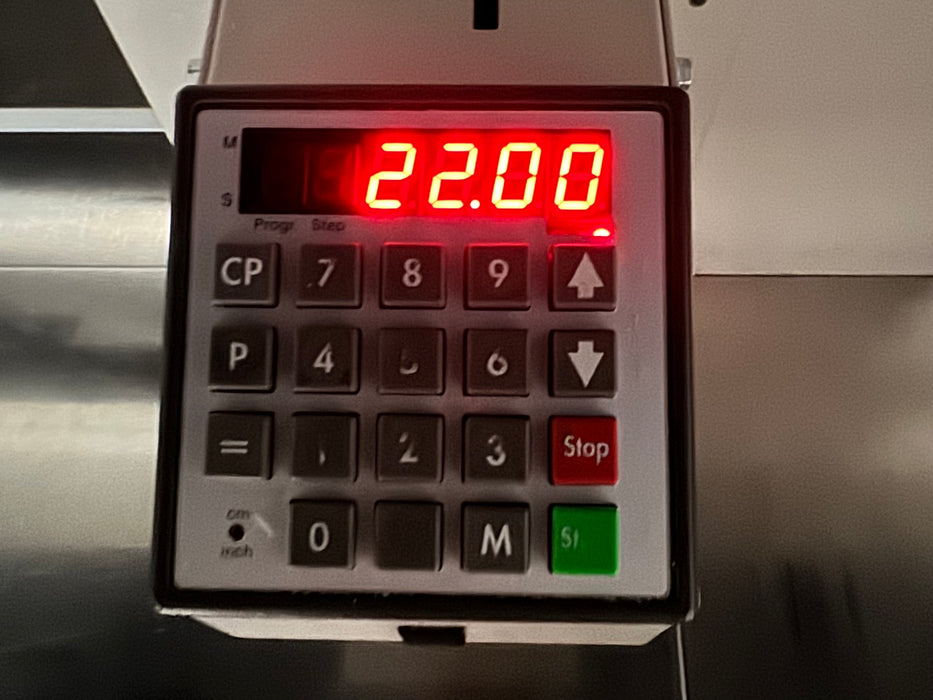

21-5/8" cutting width - efficient and accurate cutting is ensured with this hydraulic-powered guillotine cutter. The Triumph 5551-06-EP comes standard with safety features such as true 2-hand cutting activation, automatic blade/clamp return from any position in the cycle and front safety light beams. Push-button controls and the digital cut position LED display are accurate to 1/10th of a mm or 1/100th of an inch. Programmability extends the Digicut's efficiency by storing up to 99 custom jobs, with 99 cut steps in each program. This cutter performs with push-button ease while delivering quick productivity and capacity, especially for common cut jobs.

  • Four side guides for exact paper alignment
  • Safety light beams halt operation when interrupted

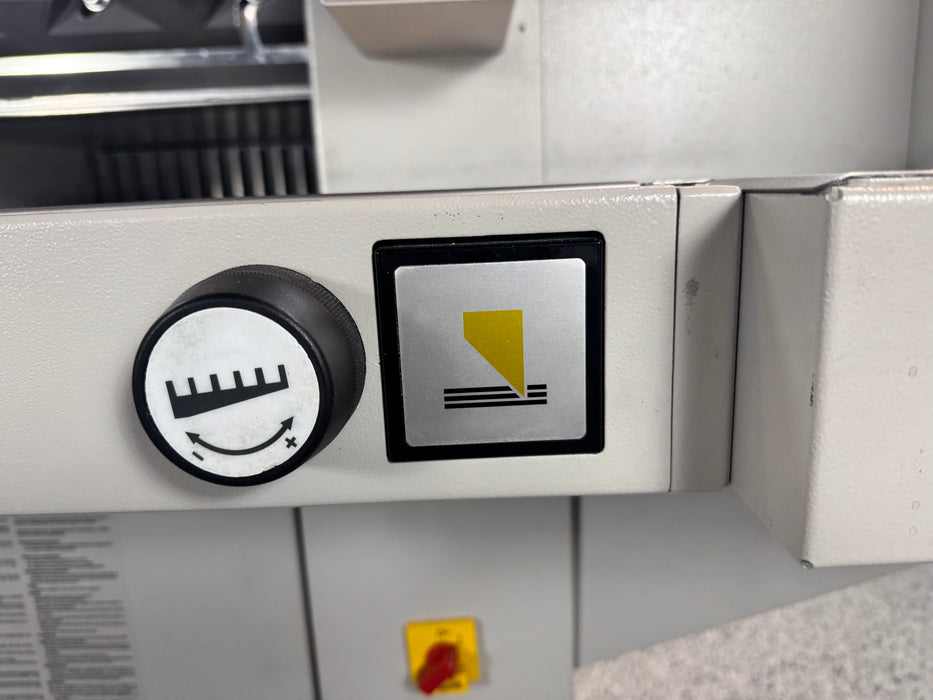

  • Electronic hand wheel allows for variable speed adjustments of back gauge
  • Back gauge is easily moved with keypad, stored program or hand wheel
  • Haydrualic-driven blade delivers ultimate power
  • The automatic paper clamp applies firm pressure along the entire cutting length

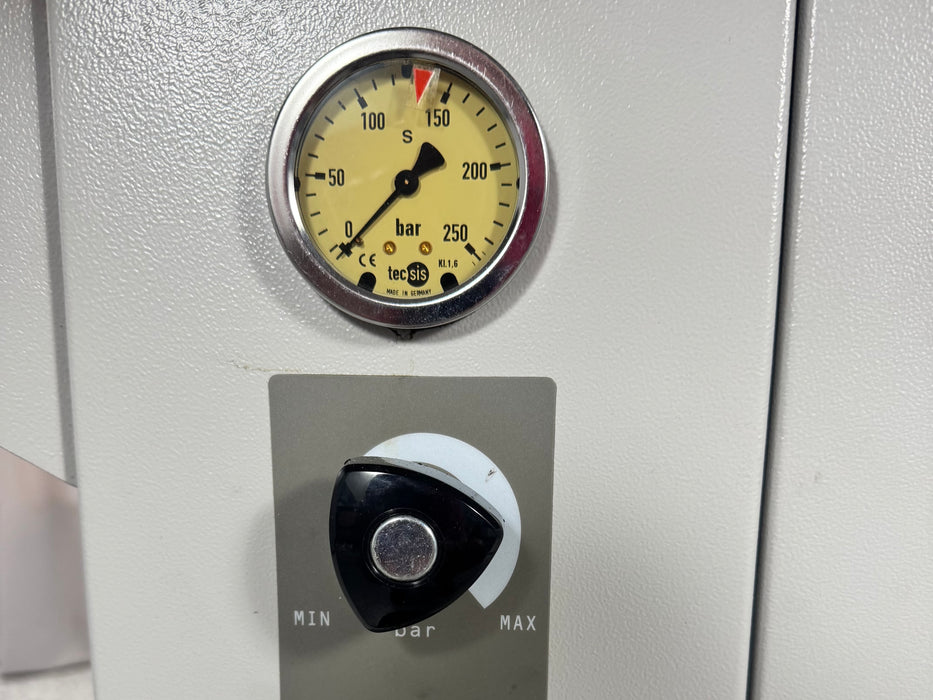

  • Adjustable hydraulic clamp pressure
  • Solid steel blade carrier and adjustable blade guides
  • Easy blade changing from front of the machine
  • Transparent safety guards on rear table
  • Optical cutting line indicates the exact position of the cut
  • False clamp and foot-pedal for pre-clamping
  • Optional side tables extend operator work surface
Cutting Width 21-5/8"
Cutting Height 3-5/8"
Narrow Cut 1-1/4" (2-3/8" with Faslse Clamp)
Program Capabilities 99 storage jobs - with 99 steps each
Cutting Length behind Knife 22-7/16"
Table Length in front of Knife 18"

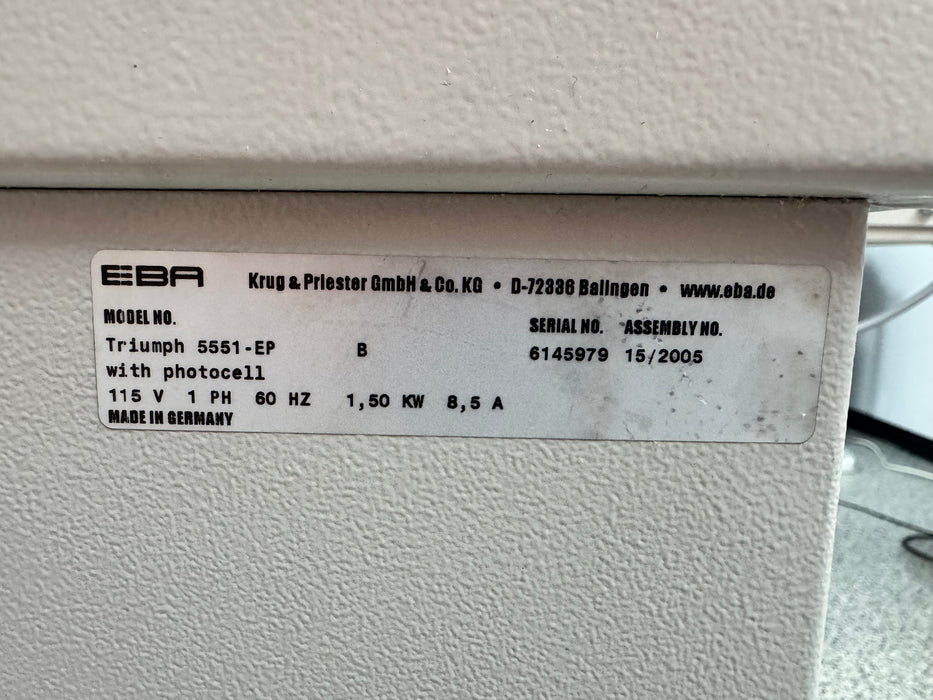

Electrical 115V, 60 Hz (20 amp dedicated fuse required)
Dimensions (w/stand) 42" W x 54" H x 55" D (64" W with side tables)
Weight 970 lbs.(1007 lbs. with side tables)
×

Complete the form below and we will be in touch with the information. Or, if you prefer, you may call us directly at 877-774-3066.
