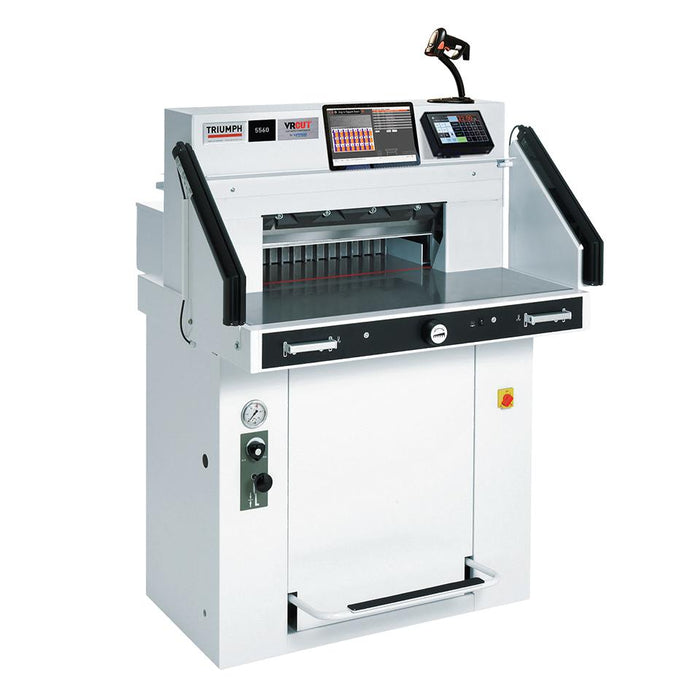

MBM Triumph 5560 Automatic 21" Paper Cutter
by Triumph
Original price
$21,739.00
-
Original price
$21,739.00
Original price
$21,739.00
$21,739.00
-
$21,739.00
Current price
$21,739.00
This product qualifies for Free Freight Shipping in the contiguous U.S.
Description
Features
- Cutting Width: 21 5/8″
- Cutting Height: 3 3/4″ (3 5/8″ with false clamp)
- Length Behind Blade: 22 7/16″
- Narrow Cut: 1 1/4″ (2 3/8″ with false clamp)
- Clamp Type: Adjustable Hydraulic
Product Details
- Electrical Requirements: 115 V, 60 Hz (20 amp dedicated line required)
- Dimensions (D x W x H): 55″ x 42″ x 54″ (64 W with side tables)
- Shipping Weight: 970 lbs. (1,008 with side tables)
- Horsepower: 2
Safety Features
- Comprehensive SCS safety package: Patented easy cut electronic blade activation bars for true two-hand operation
- IR light beam safety curtain on front table
- Safety cover on rear table
- Main switch and safety lock with key
- 24 volt controls (low voltage)
- Patented IDEAL safety drive
- Automatic blade return from every position
- Disc brake for instant blade stop
- Blade changing device covers cutting edge of blade
- Blade depth adjustment from outside of machine
- Blade and cutting stick can be changed without removing covers
Characteristics
- Programmable cutter with hydraulic blade and clamp drive, power back gauge, digital touchpad
- Electric back gauge drive with touchpad for easy programming
- Digital measurement display (cm or inches) with multilingual operator guidance, accurate to 1/10 mm or 1/100 inch
- Stores 99 programs with up to 99 steps in each (up to 15 repeat cuts can be integrated as a single step)
- Pre-programmed for standard paper sizes
- Memory key for repeat cuts
- Automatic set function for reference measurement and eject function for pushing out paper
- Self-diagnostic system with error indication on display
- Electronic back gauge control with variable speed control for manual back gauge setting
- 5560 LT model equipped with front and rear air tables (available by special order only)
- Foot pedal for pre-clamping
- Clamp pressure is fully adjustable between 1,900 and 3,800 psi
- False clamp plate. Bright, LED optical cutting line
- Stainless steel work surface
- High quality, German HSS blade
- Precision swing cut blade movement
- Aluminum blade carrier and clamp bar
- Adjustable blade guides
- All-metal construction
- Mounted on casters
- Includes an easy-access tool holder and paper blocking tool
- Optional side tables increase the work surface
- UL and C UL approved
Warranty
- 1-year limited warranty, excluding wearables
