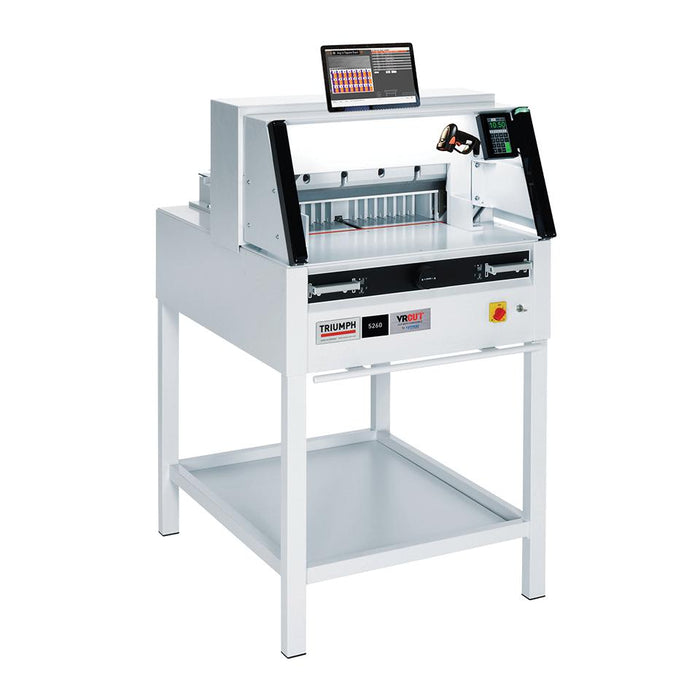

MBM Triumph 5260 Automatic 20.38" Paper Cutter
by Triumph
Original price
$16,989.00
-
Original price
$16,989.00
Original price
$16,989.00
$16,989.00
-
$16,989.00
Current price
$16,989.00
This product qualifies for Free Freight Shipping in the contiguous U.S.
Description
Features
- Cutting Width: 20 3/8"
- Cutting Height: 3"
- Length Behind Blade: 20 3/8"
- Narrow Cut: 1 3/8"
- Clamp Type: Automatic
Product Details
- Blade Material: German steel
- Horsepower: 2
- Electrical Requirements: 115 V. 60 Hz., 20-amp dedicated line
- Dimensions (D x W x H): 44" x 33 7/8" x 51" (56 1/2 W with side tables)
- Shipping Weight: 657 lbs. (677 with side tables)
Safety Features
- IR light beam safety curtain on the front table
- Safety cover on rear table
- Main switch and safety lock with key
- 24-volt controls (low voltage)
- Patented IDEAL safety drive
- Automatic blade and clamp return from every position
- Disc brake for instant blade stop
- Blade changing device covers cutting edge of the blade
- Blade depth adjustment from outside of the machine
- Blade and cutting stick can be changed without removing covers
Characteristics
- Programmable cutter with automatic clamp
- Power back gauge
- Digital Touchpad
- Patented easy cut electronic blade activation bars for true two-hand operation
- Ergonomic, 3" working height
- Electric blade and clamp drive
- Electric back gauge drive with touchpad for easy programming
- Digital measurement display (cm or inches) with multilingual operator guidance, accurate to 1/10 mm or 1/100 inch
- Stores 99 programs with up to 99 steps in each (up to 15 repeat cuts can be integrated as a single step)
- Pre-programmed for standard paper sizes. Memory key for repeat cuts
- Automatic set function for reference measurement and eject function for pushing out paper
- Self-diagnostic system with error indication on the display
- Electronic back gauge control with variable speed control for manual back gauge setting
- Bright, LED optical cutting line
- 3-step, LED front table illumination
- Adjustable, spindle guided back gauge with narrow separations and plastic gliders
- Dual side guides on front and rear tables
- Solid steel blade carrier and adjustable blade guides
- All-metal construction
- Includes stand with storage shelf, easy-access tool holder, and paper blocking tool
- Optional side tables increase the work surface
- UL and C UL approved
Warranty
- 1-year limited warranty, excluding wearables
